Automatic
video melting point tester is an indispensable testing equipment in
food, medicine and chemical industry. It is used to test the melting
point of drugs, reagents, spices, dyes and other organic crystalline
substances.
Summary:
Automatic video melting point tester is an indispensable testing equipment in food, medicine and chemical industry. It is used to test the melting point of drugs, reagents, spices, dyes and other organic crystalline substances.
MPT series melting point meter adopts HD video shooting technology, which can directly and clearly display the image of sample melting process while temperature-controlled heating, and automatically collect the corresponding images of initial melting and final melting.
Comply with all pharmacopoeia test methods.
Technical advantages:
1. Built-in 2 megapixel HD camera (pixel optional, standard configuration 2 million), real-time sample melting process video.
2. 4 samples can be measured simultaneously.
3. The linear heating rate is adjustable from 0.1℃ to 30.0℃.
4. Streamlined heat dissipation and exhaust duct design, rapid cooling and cooling, improve the efficiency of sample testing.
5. Powerful database management function, product test data classification management, automatic association of initial melting, final melting test pictures.
6. At the time of delivery, the temperature coefficient is corrected by standard sample. Customers can use it directly or calibrate it themselves.
7. Conforms to all pharmacopeia test methods.
8. Hierarchical user management and free permission allocation
9. Optional: Audit trail function.
Parameters:
Type | MPT- V1 | MPT- V2 |
Detection method | Photoelectric automatic test (one-button operation) | |
Temperature resolution | 0.1℃ | |
Temperature range | RT-350℃ | RT-400℃ |
Accuracy | ±0.5℃（RT-200℃） ±1℃（200℃-350℃/400℃/420℃） | |
Repeatability | ±0.3℃（when heating rate is 0.2℃/min） | |
Temperature correction | Standard sample is available for calibration of equipment temperature | |
Heating rate | 0.1℃-30℃/min | |
Sample quantity | Capillary method: 4 samples at a time | |
Capillary size | Inner diameter 1mm, wall thickness 0.1mm-0.15mm | |
Hd camera | 2 million pixels | |
Data collection | 1. Real-time acquisition of change video data, and automatic storage, reduce human error 2. Support data classification management 3. Optional: Audit tracking | |
Power | 220VAC-50Hz 130W | |
Configuration list:
1. Melting point meter 1pc
2. Glass capillary 500pcs
3. CD (contains software and operations video) 1pc
4. Power cords 1pc s
5. Soft-key 1pc
6. Operation manual 1pc
7. Tweezer 1pc
8. Medicine spool 1pc
9. Fuses 4pcs

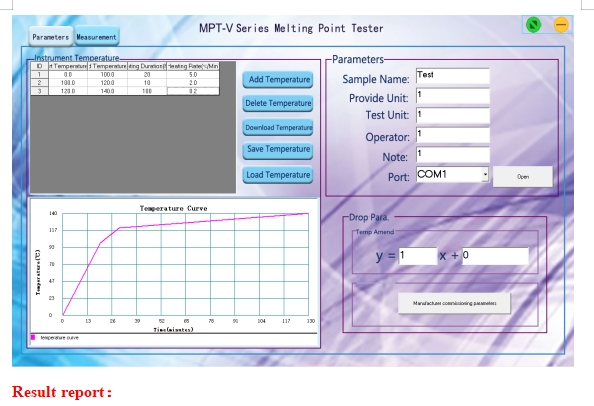

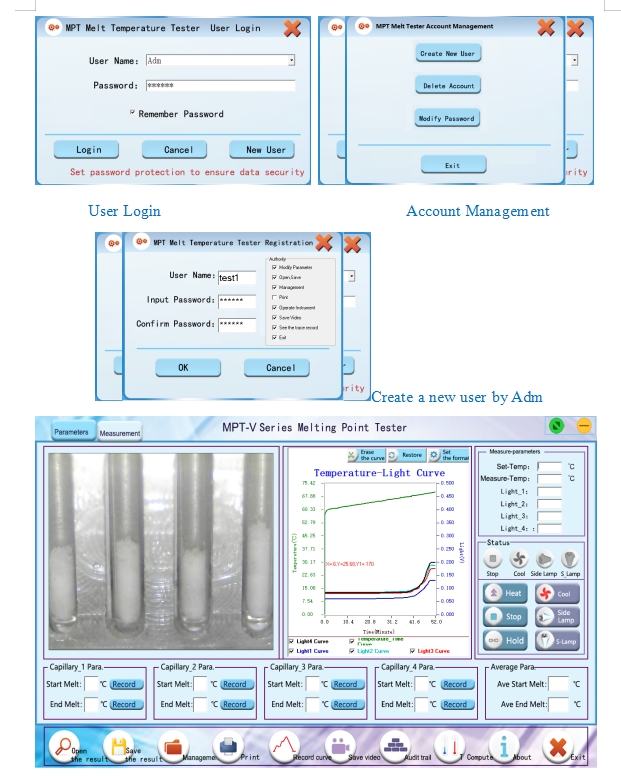

Instrument appearance and furnace structure:
